Memory

pytme computes memory requirements for template matching operations ahead of time, enabling automatic workload splitting across available hardware resources.

Scheduling occurs in three phases:

1. Predict peak memory consumption for the operation

2. Determine optimal box decomposition within hardware constraints

3. Process independent boxes sequentially or in parallel

Core Functions

compute_schedule(shape, max_memory, ...[, ...])	Plan a parallelization schedule that fits max_memory and max_workers.
estimate_memory_usage(shape1, shape2, ...[, ...])	Estimate the memory usage of a given template matching run.

compute_schedule() determines the box decomposition based on available memory and operation requirements. estimate_memory_usage() predicts peak memory consumption for a given configuration.

Decomposition Strategies

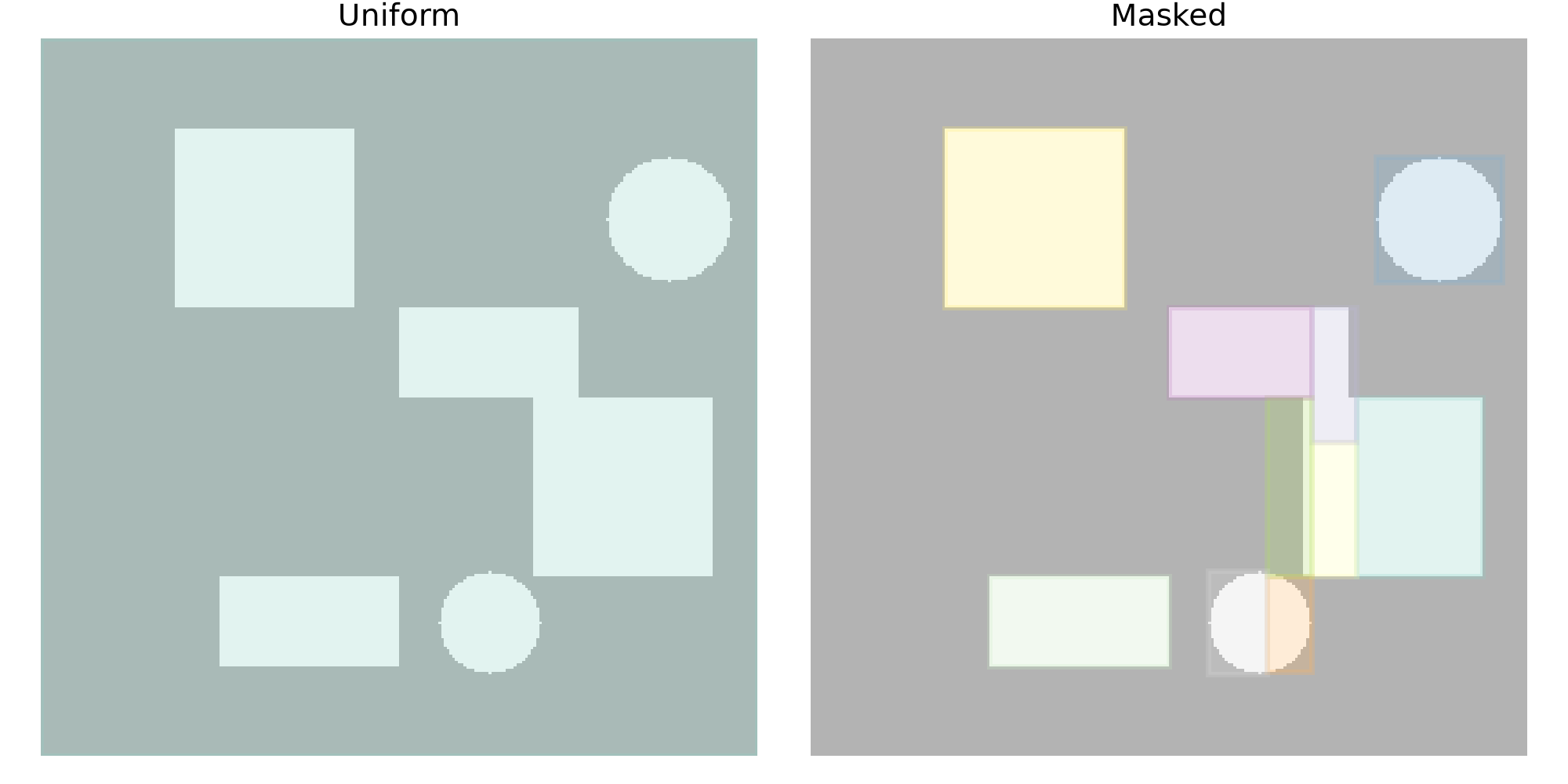

The scheduler decomposes the search space into boxes that cover the target volume while minimizing computational overhead. Two modes are available:

• Uniform: Regular grid decomposition across the entire volume

• Masked: Uses binary segmentation to place boxes only where needed, minimizing the number of computations

(Source code, png, hires.png, pdf)

Defining Memory Requirements

Custom operations register their memory footprint by subclassing MatchingMemoryUsage and implementing the required methods.

MatchingMemoryUsage(fast_shape, ft_shape, ...)

Strategy class for estimating memory requirements.

A concrete implementation for methods with uniform array requirements is MemoryProfile.

MemoryProfile(fast_shape, ft_shape, ...)

Memory estimator for methods with uniform array requirements.

Built-in Memory Profiles

Memory profiles are registered for scoring methods, analyzers, and backends. Some profiles serve multiple method identifiers (e.g., CORRMemoryUsage handles CORR, NCC, CAM, and related variants).

Scoring Methods

CCMemoryUsage(fast_shape, ft_shape, ...)	tme.matching_scores.cc_setup() memory estimator.
CORRMemoryUsage(fast_shape, ft_shape, ...)	tme.matching_scores.corr_setup() memory estimator.
FLCMemoryUsage(fast_shape, ft_shape, ...)	tme.matching_scores.flc_setup() memory estimator.
MCCMemoryUsage(fast_shape, ft_shape, ...)	tme.matching_scores.mcc_setup() memory estimator.

Analyzers

MaxScoreOverRotationsMemoryUsage(fast_shape, ...)	tme.analyzer.MaxScoreOverRotations memory estimator.
MaxScoreOverRotationsConstrainedMemoryUsage(...)	tme.analyzer.MaxScoreOverRotationsConstrained memory estimator.
PeakCallerMaximumFilterMemoryUsage(...)	tme.analyzer.peaks.PeakCallerMaximumFilter memory estimator.

Backends

CupyBackendMemoryUsage(fast_shape, ft_shape, ...)	tme.backends.CupyBackend memory estimator.
NumpyBackendMemoryUsage(fast_shape, ...)	tme.backends.NumpyFFTWBackend memory estimator.

Registering Custom Profiles

Use the register_memory() decorator to associate memory profiles with custom methods.

register_memory(*names)

Register a MatchingMemoryUsage subclass under one or more names.

The decorator accepts multiple method identifiers, allowing a single profile to serve multiple operations:

from tme.memory import MemoryProfile, register_memory

@register_memory("CustomMethod", "CustomMethodVariant")
class CustomMethodMemoryUsage(MemoryProfile):
    """Custom memory estimator."""

    #: Number of shared real arrays
    base_float = 2
    #: Number of shared complex arrays
    base_complex = 1
    #: Number of real arrays per fork
    fork_float = 1
    #: Number of complex arrays per fork
    fork_complex = 1

The MemoryProfile class simplifies registration for methods with uniform array requirements. For more complex memory patterns, subclass MatchingMemoryUsage directly:

from tme.memory import MatchingMemoryUsage, register_memory

@register_memory("ComplexMethod")
class ComplexMethodMemoryUsage(MatchingMemoryUsage):
    """Memory estimator for methods with non-uniform requirements."""

    def base_usage(self):
        # Custom implementation for base usage

    def per_fork(self):
        # Custom implementation per fork

Once registered, the memory profile is automatically used by estimate_memory_usage() and compute_schedule() for the specified method identifiers.
