Overview#

pytme ships a set of command-line tools that cover the full template-matching workflow, from preparing templates to picking particles and analysing results. This page summarises what each command does and surfaces the choices most users need to make before running them. The practical examples walk through end-to-end use.

Commands at a glance#

  • pytme template template generation for matching

  • pytme match exhaustive template matching

  • pytme postprocess peak calling and analysis of matching results

  • pytme gui napari viewer for mask creation and result inspection

  • pytme batch submit matching and analysis jobs across many tomograms

  • pytme utils auxiliary tools

Each command exposes its full options via --help.

pytme match --help

pytme template#

pytme template generates templates for matching.

pytme match#

pytme match performs exhaustive template matching over a user-defined set of rotations. Among its parameters, the scoring function defines how template and target are compared, and the compute backend selects the hardware used for the calculation.

Scoring functions#

Different scoring functions are optimised for specific mask geometries and data conditions. Select one through --score.

Scoring function selection#

Score

Best for

Mask type

Speed

Application

flcSphericalMask (default)

Ribosomes, virus particles, globular proteins

Spherical or elliptical

Fast

Particle picking

FLC

Membrane proteins, filaments, asymmetric structures

Cylindrical, tube, custom

Medium

Particle picking

CC/CAM

Quick screening

None required

Fast

EM map fitting

LCC

Edge-enhanced correlation, high S/N

None required

Fast

EM map fitting

NCC

General normalised CC

Spherical or elliptical

Fast

Particle picking

MCC

Partial volume matching

Any (requires target mask)

Slow

EM map fitting

Different scoring functions assume different mask types and data conditions.

Compute backends#

Depending on available hardware and use case, a different compute backend may be preferable. Select one through --backend.

Supported backends#

numpyfftw

cupy

pytorch

jax

Hardware

CPU

GPU (CUDA)

CPU or GPU

CPU, GPU, TPU

Performance

Fastest CPU

Good GPU allrounder

Best for peak calling

Fastest GPU (aggregation)

Analyzer support

All

All

All

MaxScoreOverRotations, MaxScoreOverRotationsConstrained, MaxScoreOverTranslations

When to use

CPU-only systems

New users with an NVIDIA GPU

Peak calling workflows

Maximum performance

pytme postprocess#

pytme postprocess analyses the score volume produced by pytme match. It identifies local maxima (peak calling), applies score statistics and background corrections, and emits results in formats suitable for downstream software.

Peak calling strategies#

pytme supports several peak callers, each tailored to different score-map characteristics such as crowdedness, peak width, and edge artifacts.

Peak calling algorithms#

Algorithm

Best for

Key features

PeakCallerMaximumFilter (default)

General use

Fast, reliable local maxima detection

PeakCallerRecursiveMasking

Crowded environments

Uses the template mask to restrict subsequent picks

PeakCallerScipy

Well-separated broad peaks

Robust, may miss overlapping peaks

For most particle picking tasks you will want to use PeakCallerMaximumFilter or PeakCallerRecursiveMasking.

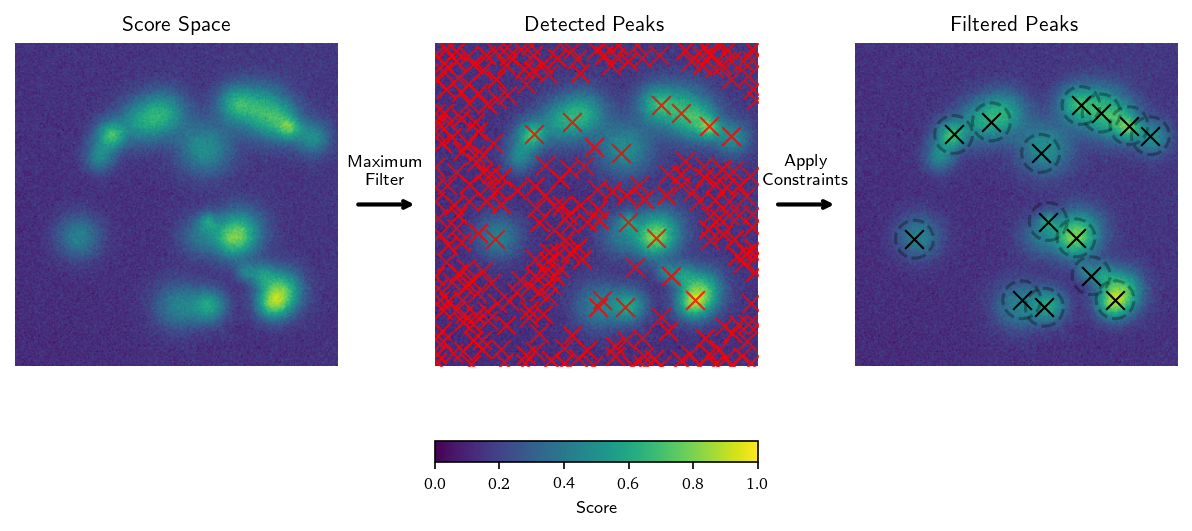

PeakCallerMaximumFilter generates candidate peaks by applying a maximum filter to the score space. The filter size is set by the minimum distance between peaks. Candidate peaks are those with the highest score in their filtered neighborhood. Peaks are then filtered by minimum distance, minimum boundary distance, and score bounds.

../_images/peak_caller_maximum_filter_process.png

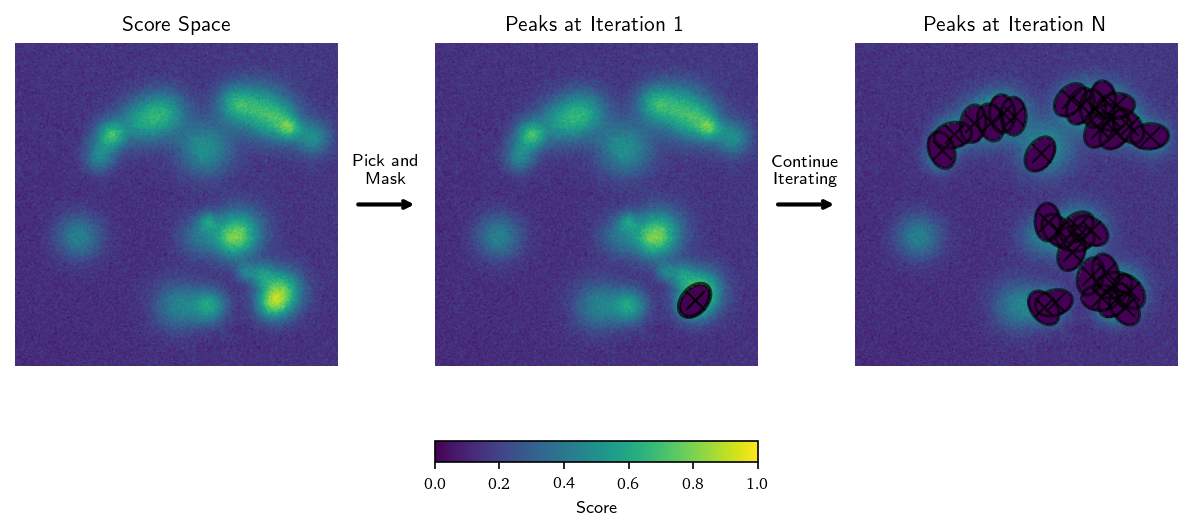

PeakCallerRecursiveMasking iteratively identifies the highest-scoring peak in the score space and places a mask around it to avoid picking the same region again. The mask can be user-specified and defaults to the mask used for template matching. The identified rotation is applied to the mask before placement. Particularly useful for environments like viral envelopes.

../_images/peak_caller_recursive_masking_process.png

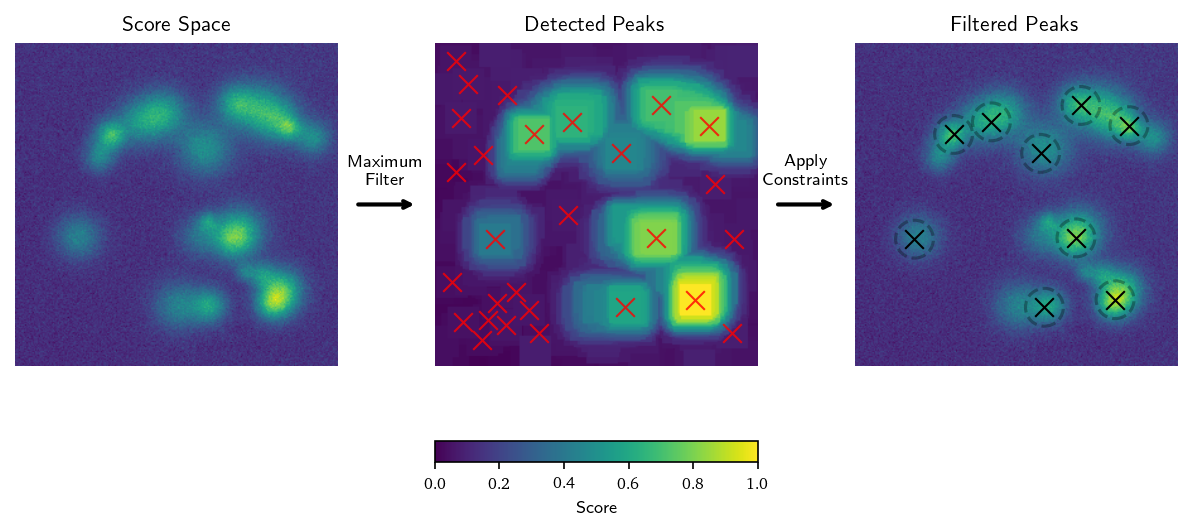

PeakCallerScipy operates like PeakCallerMaximumFilter but uses a filter mask with twice the minimum distance. This makes it suitable for cases where peaks are broad and well separated.

../_images/peak_caller_scipy_process.png

Several flags shape peak selection. --min-distance sets the minimum separation between peaks in voxels. --mask-edges excludes tomogram boundaries. --min-boundary-distance sets the minimum distance from boundaries in voxels. --num-peaks caps the number of peaks returned.

Score cutoffs#

The number of peaks is usually unknown. --n-false-positives derives a suitable cutoff from the statistical properties of the cross-correlation, limiting the expected false-positive count [Rickgauer2017].

pytme postprocess \
    --input-file results.pickle \
    --n-false-positives 5 \
    --output-format orientations

Cutoffs can also be set explicitly with --min-score and --max-score. The maximum number of peaks is always bounded by --num-peaks.

Background correction#

Cellular environments contain complex backgrounds that can yield high scores in regions unrelated to the template. pytme can subtract such effects by referencing template matching scores computed against alternative templates (--background-file). Multiple background sources can be combined to account for noise, membranes, and other contaminants. Multiple foreground inputs let you distinguish between different macromolecular species in the same run.

Added in version 0.3.0.

A single pytme postprocess invocation can combine all three features.

pytme postprocess \
    --input-file ribosome.pickle proteasome.pickle \
    --background-file noise.pickle membrane.pickle \
    --output-format orientations

The tool reports statistics for foreground, background, and normalised scores.

> Foreground mean 0.125, std 0.087, max 0.445
> Background mean 0.089, std 0.023, max 0.234
> Normalized mean 0.067, std 0.078, max 0.298

When background distributions differ between entities, --snr is useful for comparing SNR-like cross-correlations across an entire dataset.

Output formats#

Pass --output-format to choose the format. See Coordinate System for the coordinate convention used in all outputs.

  • orientations: tab-separated file with translations, ZYZ Euler angles, score, and peak details.

  • relion4: STAR file with voxel coordinates (RELION 4 convention).

  • relion5: STAR file with centered, voxel-scaled coordinates (RELION 5).

  • alignment: subvolumes written with the template transformed into the identified orientation. Useful for visually assessing fit quality.

  • extraction: subvolumes extracted around each peak, no rotation applied.

  • average: a single averaged subvolume across all peaks.

  • pickle: a new pickle incorporating input files and backgrounds, useful for assessing normalisation and reusable as --input-file.

pytme postprocess \
    --input-file output.pickle \
    --output-format orientations \
    --mask-edges \
    --min-boundary-distance 20 \
    --num-peaks 100

pytme gui#

pytme gui launches an interactive napari viewer for creating masks and for visualising and analysing template matching results, including candidate inspection.

See Using the GUI for a walkthrough.

pytme batch#

pytme batch automates template matching and analysis across many tomograms. It has two modes that can be run independently or as a pipeline.

Added in version 0.3.1.

  • pytme batch matching: run template matching.

  • pytme batch analysis: analyse template matching results.

See Cluster Execution for cluster submission, dataset discovery, and configuration.

pytme utils#

pytme utils collects auxiliary tools that support the main workflow. The most commonly used are listed below.

  • pytme utils mask creates simple geometric masks.

  • pytme utils average produces a simple average from a set of picks.

  • pytme utils evaluate compares predicted picks against ground truth.

  • pytme utils memory estimates the memory required for a matching run.

Each subcommand exposes its options through --help.

References#

[Rickgauer2017]

Rickgauer, J. P.; Grigorieff, N.; Denk, W. Single-protein detection in crowded molecular environments in cryo-EM images. eLife 2017, 6, e25648.
